Furnace Monitoring Cameras

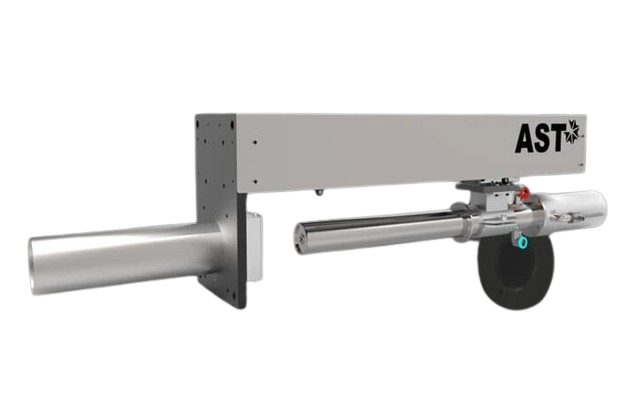

We provide High-temperature furnace monitoring system AST TFV-750/TE-750.This system provides inside wide-angle view of the burner flames, material alignment and movement, and other processes in the furnace-like kiln, boilers, Re-heating furnaces, melting furnaces or other combustion chamber. The normal view system TFV-750/1100 & thermal view system TE-750/1100 is mounted on the furnace of the wall. It consists of auto retraction and insertion system which is regulated by a control cabinet with PLC; Pneumatic control system.

We use a special visual or thermal camera with high precision pinhole lens which is mounted inside a stainless steel probe. The probe is equipped with vortex air; water cooling system that enables the system to work in high-temperature environment and also a continuous supply of air keeps the lens clean.

When the temperature of the inner Probe rises above the set limits or the pressure of compressed air; flow of water decreases below the set value, then the camera will automatically move out of the furnace. The Camera is inserted through a spring-loaded shutter which opens the force of camera probe &  shuts the furnace opening when the probe is removed.
