Discover the Precision of T Series Infrared Temperature Sensors for Industrial Applications | Two-Color & Fiber Optic IR Sensors
Infrared Temperature Sensors such as those in the T Series and T3 Series by Accurate Sensors Technologies are specifically designed for precise, non-contact temperature measurement in industrial environments. These compact and durable IR pyrometers deliver high accuracy and performance, making them ideal for harsh and demanding applications. With advanced features and seamless integration capabilities, these industrial infrared sensors provide reliable solutions for a wide range of process monitoring needs.

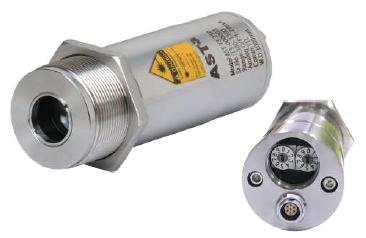

Key Features – T3 Series
The T3 Series pyrometers are designed with two-wire technology, ensuring easy and reliable electrical connections. Housed in a robust stainless steel casing, these sensors provide high operational safety even in harsh environments. Their compact design, combined with precision targeting and advanced configuration options, makes them an excellent solution for demanding applications.
Key highlights of the T3 Series include:
- Two-wire technology for simplified electrical connection
- Compact and accurate stainless steel design for industrial safety
- Laser light for precise targeting of the measurement object
- Small spot sizes for detailed measurement areas
- Digital TTL output
- Parameters such as Analog Sub Range, Response Time, Peak Picker, and Valley Picker – preset ex-works or adjustable via Infrasoft software
Key Features – T Series
The T Series pyrometers are OEM-recommended models, specifically tailored for demanding industrial use due to their compact size, small housing dimensions, and low maintenance. These models offer flexible integration and reliable performance, including specialized options for glass and quartz surface measurements.
Highlights of the T Series include:
- OEM-optimized design with compact form and industrial durability

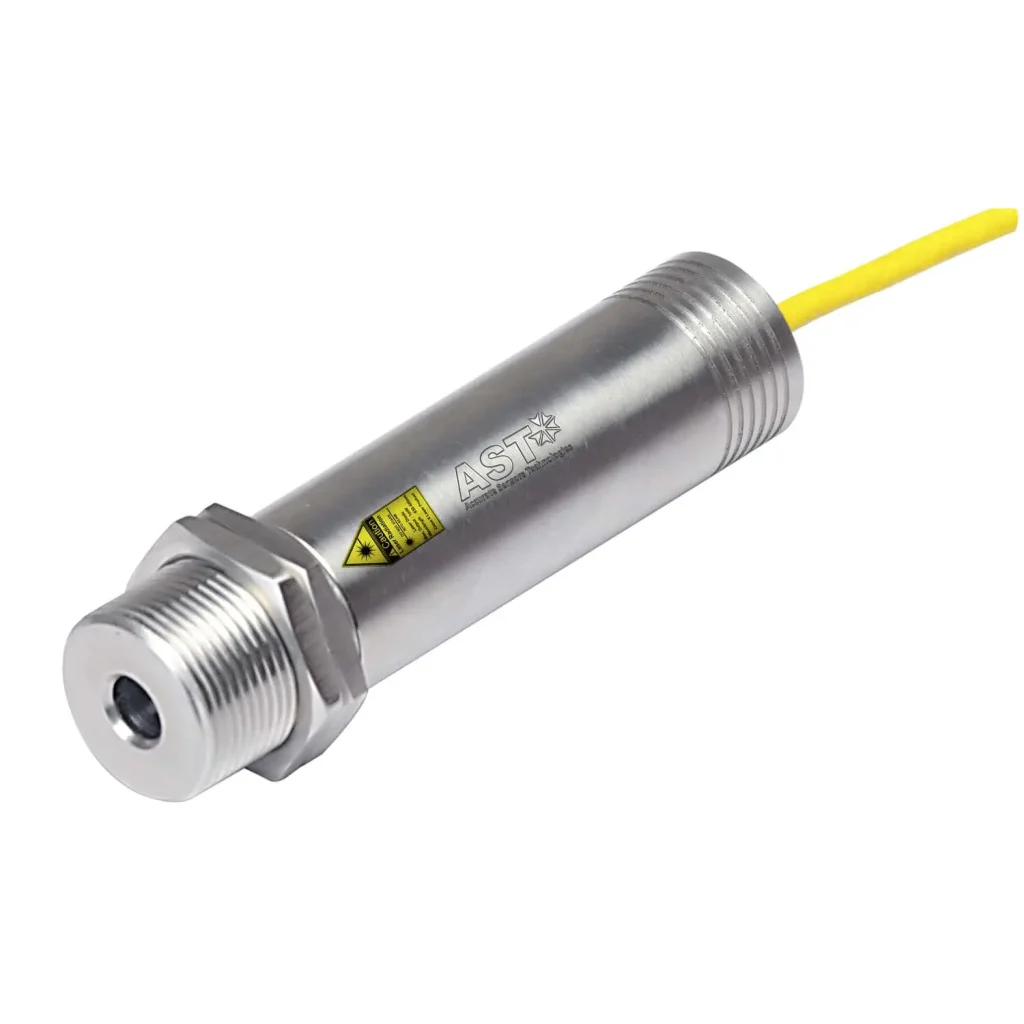

- TL8 model supports K-type or J-type thermocouple output, in addition to standard analog outputs (0–5V, 4–20mA, 0–20mA), ideal for low-temperature applications (0°C to 500°C)
- Alarm output included in the TL8 model
- TL 390 & TL 514 models are designed for accurate non-contact measurement of glass and quartz surfaces
- Multidrop T Series enables cost-effective temperature monitoring across multiple points in a process
- Infralink USB interface for easy access to configuration software (Infrasoft)
Explore Our Wide Range of Precision Infrared Temperature Sensors – Find the Perfect Solution for Your Industrial Needs
Standard Scope of Supply
Each series comes with a comprehensive standard package to ensure ready-to-use functionality right out of the box.
T3 Series includes:
- Pyrometer with 3-meter connection cable
- Isolated analog output (2-wire, 4–20 mA)
- Emissivity adjustable switch
- TTL output
- Calibration certificate
- Infrasoft PC software and operation manual
T Series includes:
- Pyrometer with 3-meter connection cable
- Selectable analog output: 0–5V, 4–20mA, or K/J-type thermocouple
- TTL output and Alarm output (for TL8 model)
- Calibration certificate
- Infrasoft PC software and operation manual
Optional Accessories
Both series support a range of optional accessories for extended functionality:
- Extra cable lengths
- Mechanical and electrical mounting accessories
- USB interface card and PC software
