Discover the Precision of E Series Infrared Temperature Sensors for Industrial Applications | Two-Color & Fiber Optic IR Sensors
The E Series Infrared Temperature Sensors pyrometers are highly popular among process end users for temperature measurement, primarily due to their economical pricing and reliable performance. These pyrometers feature a two-piece measurement system, consisting of one extended sensor head and one electronic box. The electronic unit is equipped with a built-in 4-digit LCD display that offers a wide range of signal processing features.
Using the keypad on the electronic box, users can configure a variety of parameters, including:
- Emissivity
- Analog sub-range
- Set point
- Hysteresis (Hyst)
- Analog output
- Temperature unit (°C or °F)
- Response time
- Peak picker
- Sensor address

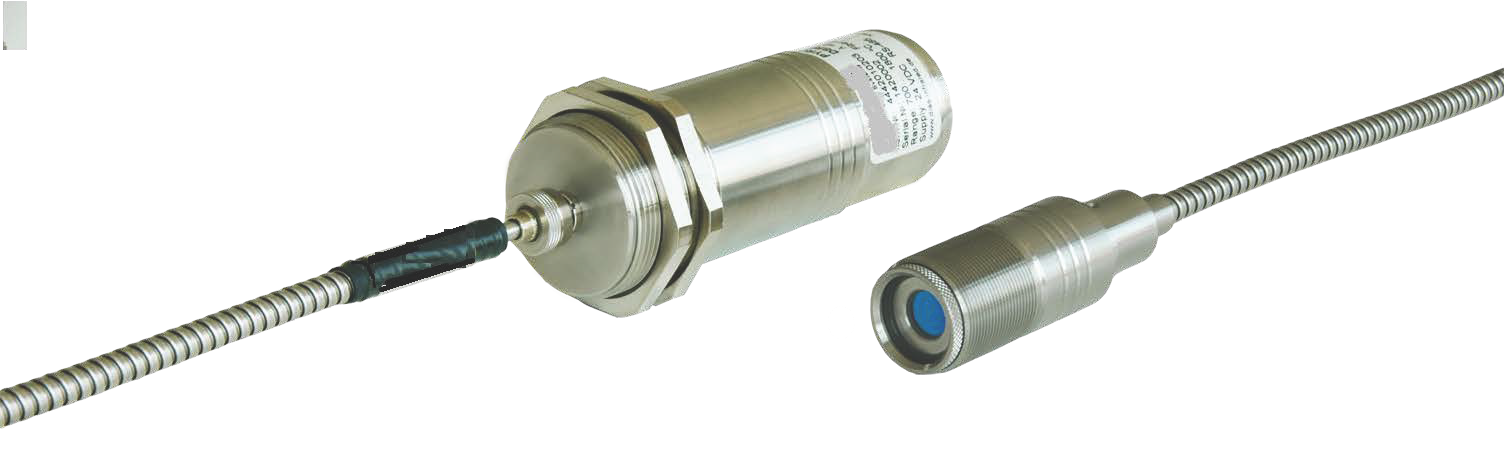

The E Series includes both single color and two color models. The E250 PL and E450 PL are single color pyrometers, while the E450C PL is a two color model. Models such as EL50 and EL50-H are specially designed to withstand high ambient temperatures, operating comfortably up to 120°C and 180°C, respectively.
Available output options include:
Analog outputs:
- 0…20mA
- 4…20mA
- 0…10V
Digital outputs and interfaces:
- USB 2.0
- RS-232 / RS-485 serial interface
- Relay output
To enhance usability, the system is supported by Infrasoft, a user-friendly PC software designed for communication and configuration.
Explore Our Wide Range of Precision Infrared Temperature Sensors – Find the Perfect Solution for Your Industrial Needs
EL50-H
Temperature Range 0°C to 800°C
Sensor head can withstand ambient temperature 180°C
EL50-H+
Temperature Range 0°C to 800°C
Sensor head can withstand ambient temperature 250°C
EL50-H+Ex
Temperature Range 0°C to 800°C
Sensor head can withstand ambient temperature 250°C
Standard Scope of Supply
- Pyrometer with LCD Display
- Keypad for parameterizing
- Extended Sensor head with 3 mtr cable
- Laser Targeting Light
- Analog output 4…20mA, 0…20mA, 0… 10V
- USB 2.0 Digital output, USB cable
- Relay Outpu
- Calibration certificate, Software & Operation manual
Optional
- Extra Sensor Head Extension Cable Lengths
- RS-232 / RS-485 Interface card
- Mechanical & Electrical Accessories
